Machines delivered to your door today - The fastest way to boost your productivity.

Are you looking for a machining center, but cannot wait the long delivery times? Then we have the perfect solution for you: discover our in-stock 5-axis machining centers that are available for immediate delivery. Check out each machines specifications below.

HELLER machining centers offer maximum efficiency for diverse production requirements.


Find the right machine for you now!

- Increasing your 5-axis productivity -

You have options, see what's in-stock now!

5-axis machining centers

HF

Productivity in 5 axes: 5-axis machining centers with the fifth axis in the workpiece for dynamic and productive machining

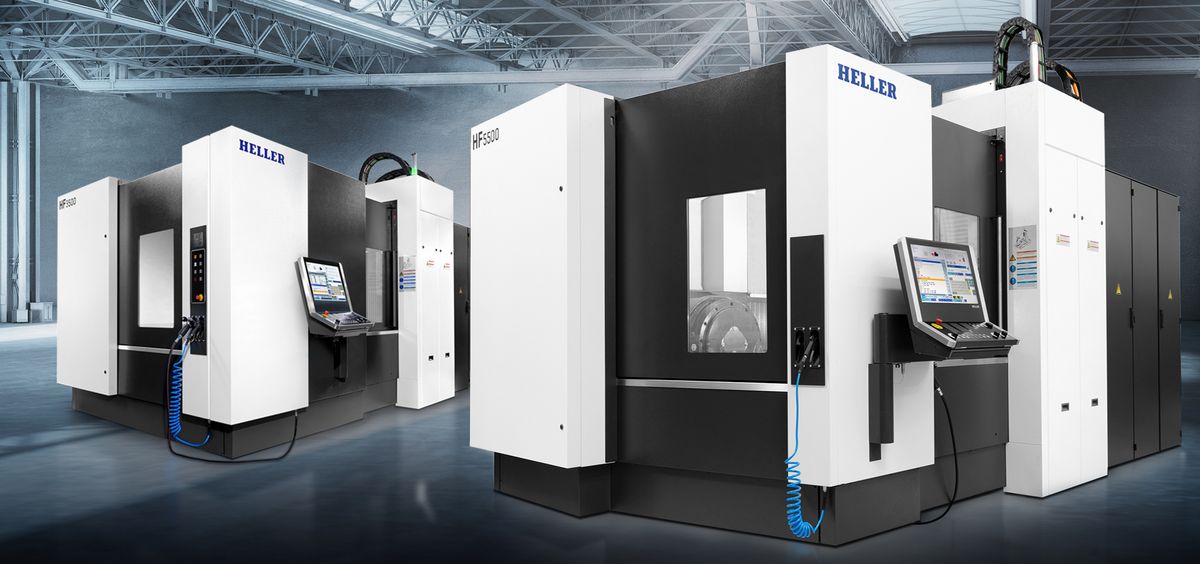

5-axis machining centers HF

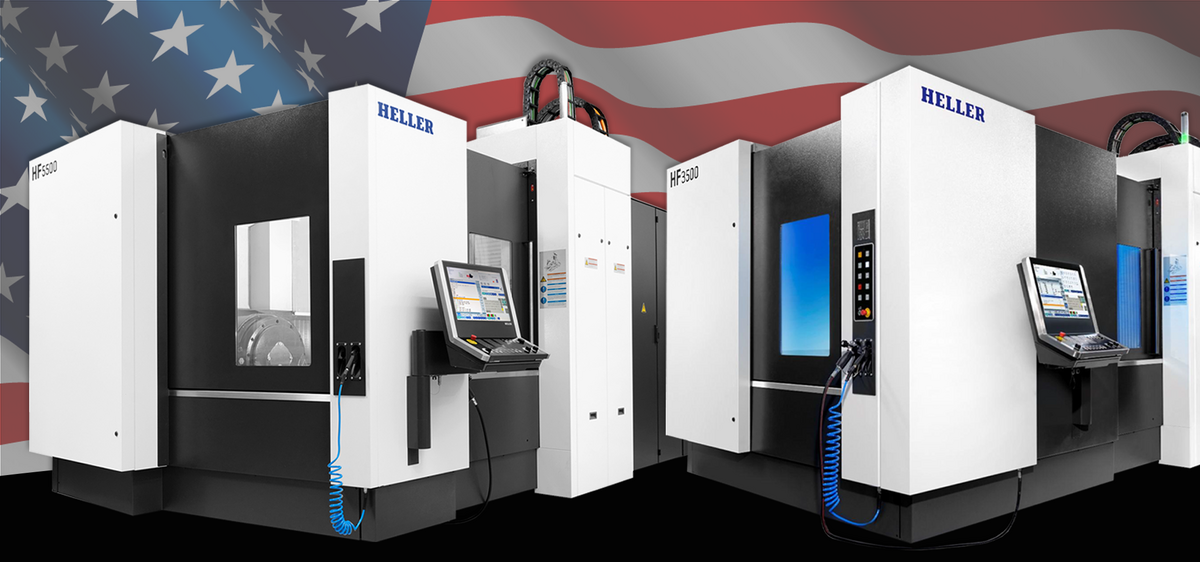

USA in-stock 5-axis machining centers

5-axis machining centers for dynamic and productive machining

The 5-axis machining centers from the HF & C series are optimally equipped to meet the exacting requirements of modern production processes. Enabling 5-sided and/or simultaneous 5-axis machining, they allow you to handle many different tasks on a single machine. Highly productive and flexible, with easy operation and maintenance.

5-axis machining centers for dynamic and productive machining

The 5-axis machining centers from the HF series are optimally equipped to meet the exacting requirements of modern production processes. Enabling 5-sided and simultaneous 5-axis machining, they allow you to handle many different tasks on a single machine. Highly productive and flexible, with easy operation and maintenance.

Available machines

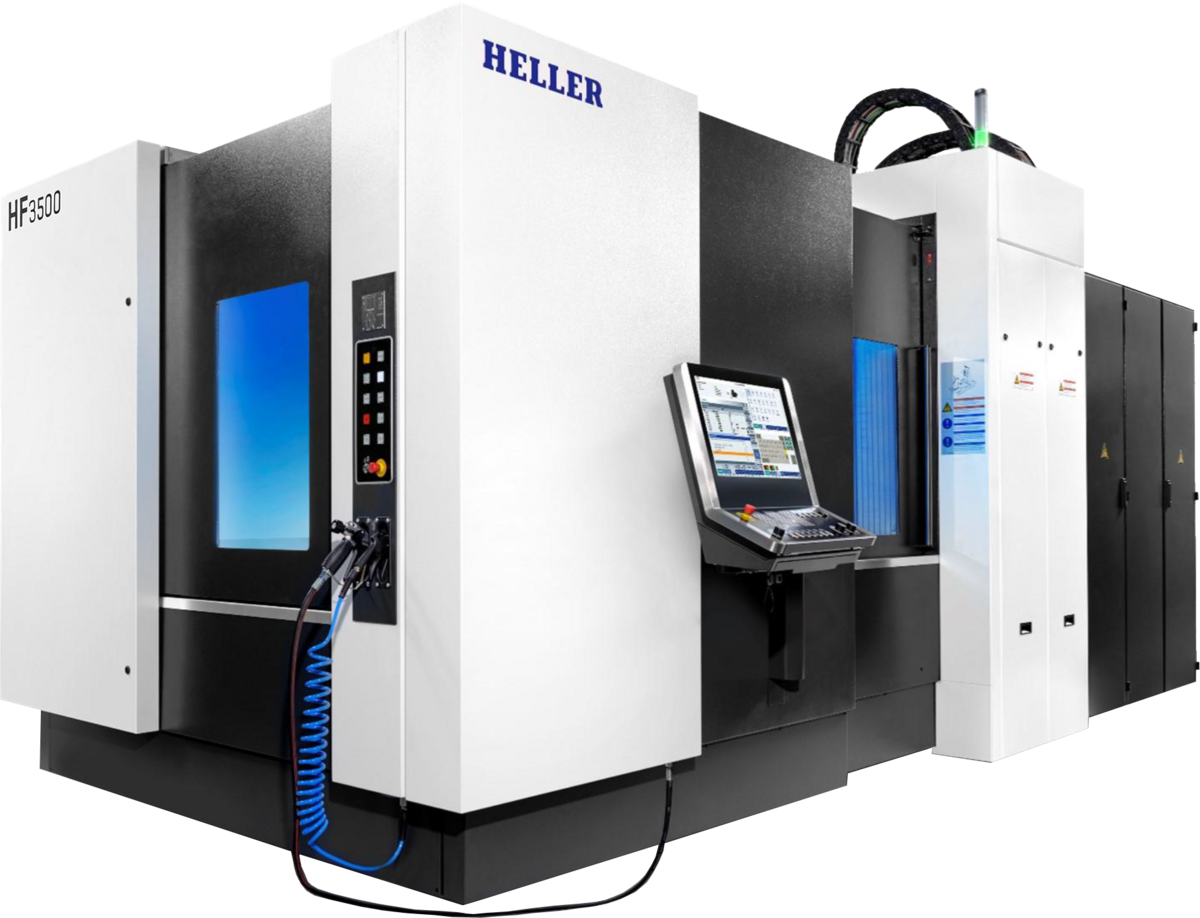

HF 3500 APC G2 | HSK-63 | 80 Tools | M59691

Equipment package Power
Positioning range X/Y/Z 710/750/710 mm
Rapid traverse speed X/Y/Z 65/65/65 m/min
Tool shank HSK-A 63
Spindle SC: 18,000 rpm / 45 kW / 103 Nm
Clamping surface (nominal size) 400 x 500 mm
Clamping load 550 kg
Hydraulic workpiece clamping 200 bar
Tool magazine Chain-type magazine, 80 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 3500 APC G2 | HSK-63 | 160 Tools | M59692

Equipment package Power
Positioning range X/Y/Z 710/750/710 mm
Rapid traverse speed X/Y/Z 65/65/65 m/min
Tool shank HSK-A 63
Spindle SC: 18,000 rpm / 45 kW / 103 Nm
Clamping surface (nominal size) 400 x 500 mm
Clamping load 550 kg
Hydraulic workpiece clamping 200 bar
Tool magazine Chain-type magazine, 160 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 3500 APC G2 | HSK 63 | 80 Tools | M58702

Equipment package Power
Positioning range X/Y/Z 710/750/710 mm
Rapid traverse speed X/Y/Z 65/65/65 m/min
Tool shank HSK-A 63
Spindle SC: 18,000 rpm / 45 kW / 103 Nm
Clamping surface (nominal size) 400 x 500 mm
Clamping load 550 kg
Probe Renishaw RMP 60
Hydraulic workpiece clamping 200 bar
Tool magazine Chain-type magazine, 80 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 3500 APC G2 | HSK 63 | 80 Tools | M59440

Equipment package Power
Positioning range X/Y/Z 710/750/710 mm
Rapid traverse speed X/Y/Z 65/65/65 m/min
Tool shank HSK-A 63
Spindle SC: 18,000 rpm / 45 kW / 103 Nm
Clamping surface (nominal size) 400 x 500 mm
Clamping load 550 kg
Probe Renishaw RMP 600
Hydraulic workpiece clamping 200 bar
Tool magazine Chain-type magazine, 80 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 3500 APC G2 | HSK 63 | 80 Tools | M59441

Equipment package Power
Positioning range X/Y/Z 710/750/710 mm
Rapid traverse speed X/Y/Z 65/65/65 m/min
Tool shank HSK-A 63
Spindle SC: 18,000 rpm / 45 kW / 103 Nm
Clamping surface (nominal size) 400 x 500 mm
Clamping load 550 kg
Probe Renishaw RMP 600
Hydraulic workpiece clamping 200 bar
Tool magazine Chain-type magazine, 80 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 3500 APC G2 | HSK 63 | 160 Tools | M59442

Equipment package Power
Positioning range X/Y/Z 710/750/710 mm
Rapid traverse speed X/Y/Z 65/65/65 m/min
Tool shank HSK-A 63
Spindle SC: 18,000 rpm / 45 kW / 103 Nm
Clamping surface (nominal size) 400 x 500 mm
Clamping load 550 kg
Probe Renishaw RMP 600
Hydraulic workpiece clamping 200 bar
Tool magazine Chain-type magazine, 160 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 5500 APC G2 | HSK-100 | 100 Tools | M59444

Equipment package Power
Positioning range X/Y/Z 900/950/930 mm
Rapid traverse speed X/Y/Z 65/65/65 m/min
Tool shank HSK-A 100
Spindle SC: 13,000 1/min / 45 kW / 228 Nm
Clamping surface (nominal size) 500 x 630 mm
Clamping load 750 kg
Hydraulic workpiece clamping 200 bar
Probe Renishaw RMP 600
Measurement BLUM high-precision laser and touch probe
Tool magazine Chain-type magazine, 100 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 5500 APC G2 | HSK-100 | 100 Tools | M59445

Equipment package Power
Positioning range X/Y/Z 900/950/930 mm
Rapid traverse speed X/Y/Z 65/65/65 m/min
Tool shank HSK-A 100
Spindle SC: 13,000 1/min / 45 kW / 228 Nm
Clamping surface (nominal size) 500 x 630 mm
Clamping load 750 kg
Hydraulic workpiece clamping 200 bar
Probe Renishaw RMP 600
Measurement BLUM high-precision laser and touch probe
Tool magazine Chain-type magazine, 100 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 5500 APC M/T G2 | HSK-100 | 150 Tools | M59446

Mill/Turn
Equipment package PRO
Positioning range X/Y/Z 900/950/930 mm
Rapid traverse speed X/Y/Z 90/90/80 m/min
Tool shank HSK-T 100
Spindle DC: 12,000 1/min / 45 kW / 400 Nm
Clamping surface (nominal size) 500 x 630 mm
Clamping load 750 kg
Hydraulic workpiece clamping 200 bar
Probe Renishaw RMP 600
Measurement BLUM high-precision laser and tactile pushbutton
Sensor Fast drill fracture sensing
Tool magazine Chain-type magazine, 150 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 5500 DL M/T | HSK-100 | 150 Tools | M59447

Direct load machine
Mill/Turn
Equipment package PRO900/950/930 mm
Rapid traverse speed X/Y/Z 90/90/80 m/min
Tool shank HSK-T 100
Spindle DC: 12,000 1/min / 45 kW / 400Nm
Clamping surface (nominal size) 810 mm diameter
Clamping load 750 kg
Probe Renishaw RMP 600
Measure BLUM precision laser and tactile pushbutton
Tool magazine Chain-type magazine, 150 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 5500 APC G2 | HSK-100 | 150 Tools | M59695

Equipment package Power
Positioning range X/Y/Z 900/950/930 mm
Rapid traverse speed X/Y/Z 65/65/65 m/min
Tool shank HSK-A 100
Spindle SC: 13,000 rpm / 45 kW / 228 Nm
Clamping surface (nominal size) 500 x 630 mm
Clamping load 750 kg
Hydraulic workpiece clamping 200 bar
Tool magazine Chain-type magazine, 150 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 5500 APC M/T | HSK-100 | 150 Tools | M59696

Mill/Turn
Equipment package PRO
Positioning range X/Y/Z 900/950/930 mm
Rapid traverse speed X/Y/Z 90/90/80 m/min
Tool shank HSK-T 100
Spindle DC: 12,000 rpm / 45 kW / 400 Nm
Clamping surface (nominal size) 500 x 630 mm
Clamping load 750 kg
Tool magazine Chain-type magazine, 150 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 5500 APC M/T | HSK-63 | 160 Tools | M59697

Mill/Turn
Equipment package PRO
Positioning range X/Y/Z 900/950/930 mm
Rapid traverse speed X/Y/Z 90/90/80 m/min
Tool shank HSK-T 63
Spindle DC: 16,000 rpm / 56 kW / 180 Nm
Clamping surface (nominal size) 500 x 630 mm
Clamping load 750 kg
Tool magazine Chain-type magazine, 160 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 5500 DL M/T | HSK-100 | 100 Tools | M59698

Direct load machine
Mill/Turn
Equipment package PRO
Positioning range X/Y/Z 900/950/930 mm
Rapid traverse speed X/Y/Z 90/90/80 m/min
Tool shank HSK-T 100
Spindle DC: 12,000 rpm / 45 kW / 400 Nm
Clamping surface (nominal size) 810 mm diameter
Clamping load 750 kg
Tool magazine Chain-type magazine, 150 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

HF 5500 DL M/T | HSK-63 | 160 Tools | M59699

Direct load machine
Mill/Turn
Equipment package PRO
Positioning range X/Y/Z 900/950/930 mm
Rapid traverse speed X/Y/Z 90/90/080 m/min
Tool shank HSK-T 63
Spindle DC: 16,000 rpm / 56 kW / 180 Nm
Clamping surface (nominal size) 810 mm diameter
Clamping load 750 kg
Tool magazine Chain-type magazine, 160 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now

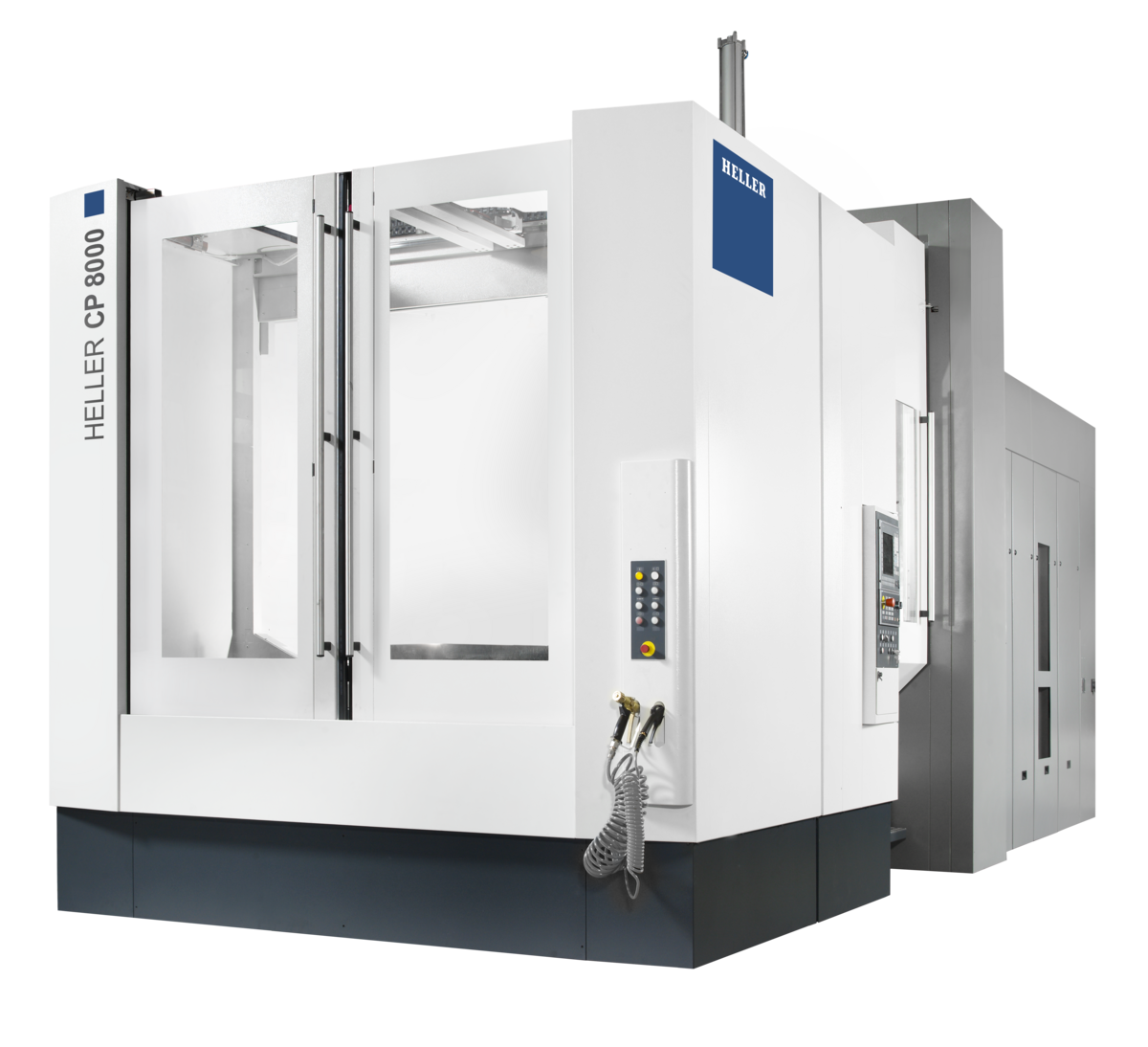

CP 8000 | HSK 100 | 150 Tool Mag | M 59449

Machine package High Accuracy Package
Head type Swivel head
Milling/Turning
Positioning range X/Y/Z 1250/1200/1400 mm
Rapid traverse speed X/Y/Z 50/50/50 m/min
Tool shank HSK-T 100
Spindle SCU: 12,500 rpm / 80 kW / 350 Nm
Clamping surface (nominal size) 800 x 800 mm
Clamping load 2,000 kg
Wireless measuring probe Renishaw RMP 600
Tool measure BLUM high-precision laser and touch probe
Sensor Fast drill fracture sensing
Tool magazine Chain-type magazine, 150 places
Machine control Siemens SINUMERIK 840D sl
Warranty 24 months


Immediately available

Enquire now
