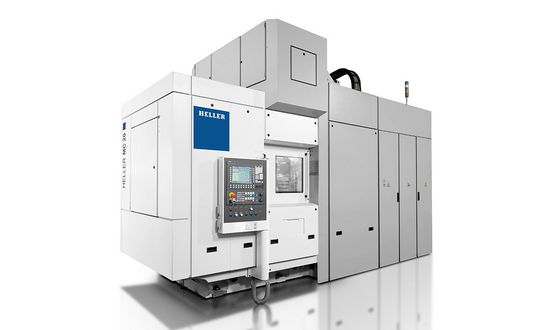

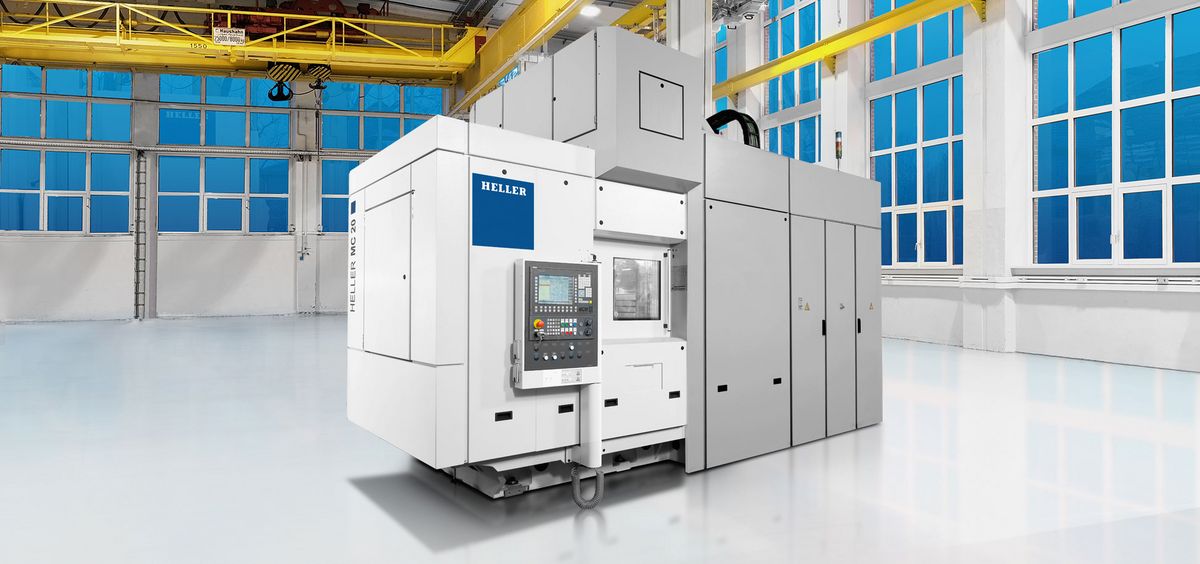

HELLER MC 20: reliable and highly precise conversion artist for flexible manufacturing systems

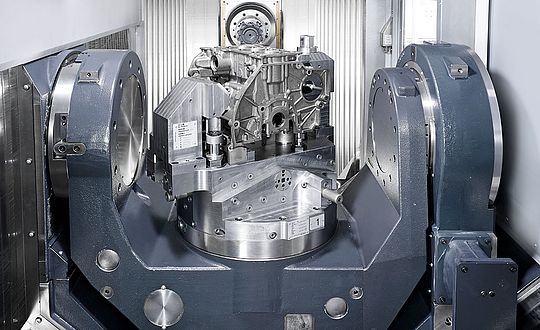

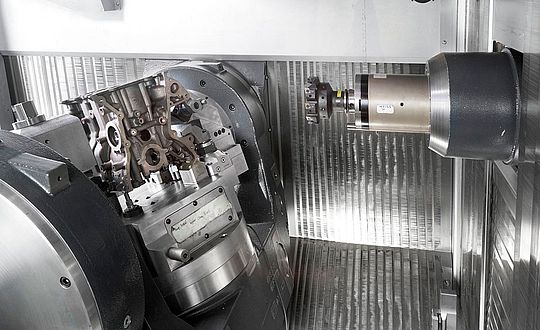

4-/5-axis machining on the HELLER MC 20

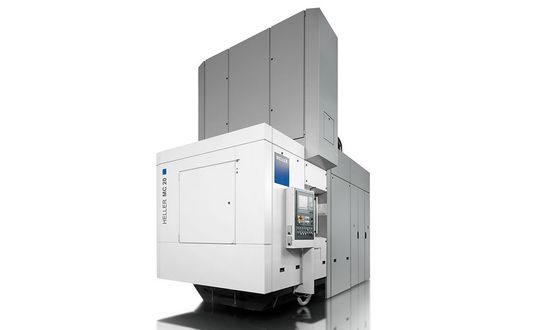

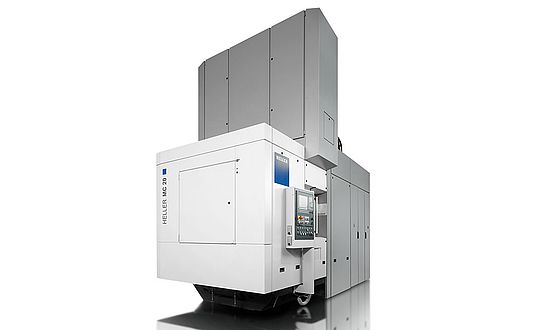

Cross-bed and travelling column in gated design
- high stability and damping in the flow of forces through topology-optimized structural components from cast iron
- optimized flow of forces and thermo-symmetrical design
- broad range of machining units in a robust design
- automatic tool changer with two NC-axes for fast automatic tool change
- range of tool magazines, rack-type matched to the process requirements
4-axis or 5-axis kinematics with horizontal spindle
- machine bed carries the X- and the Z-axis in a cross bed arrangement
- the machine column traverses in the X-direction and carries the machining unit
- machining unit traverses in the Y-direction, compactly integrated into the machine column in a stable manner
- NC rotary indexing table (B) or NC swivel table (A) as the 4th axis traverses in the Z-direction and executes the feed movement
- 5-axis design with NC rotary indexing table (AB)
Dynamic and stiff: Roller bearing-mounted linear guides and stable YRT bearings in the rotary axes
- linear axes with roller guides, driven by ball screws for a high dynamic
- direct, absolute measuring systems (glass scales in linear axes) for optimized precision and low position tolerance
- direct drives in both rotary axis for the design with NC rotary indexing table (AB)
- stable counter bearing as standard on design with NC rotary indexing table (AB)

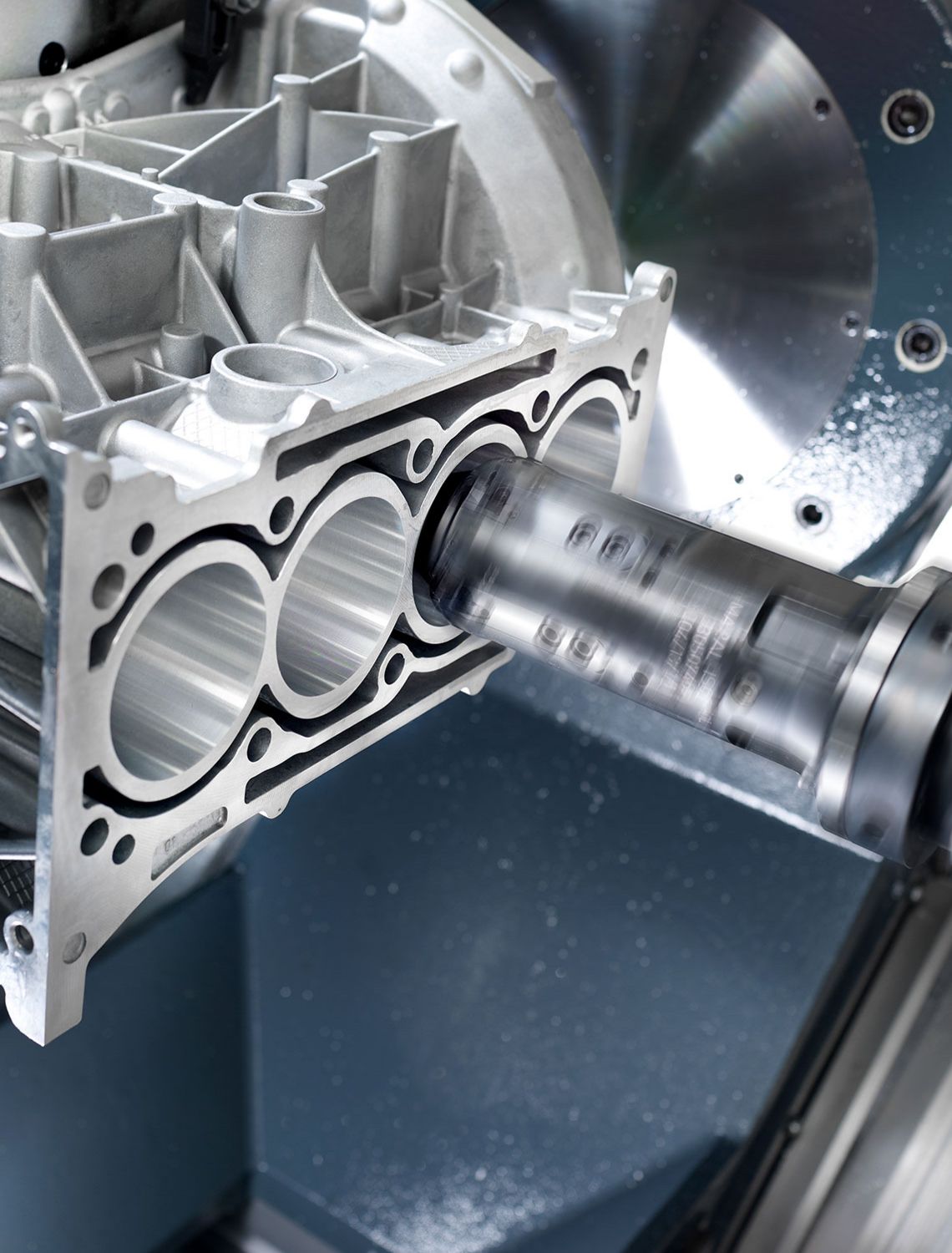

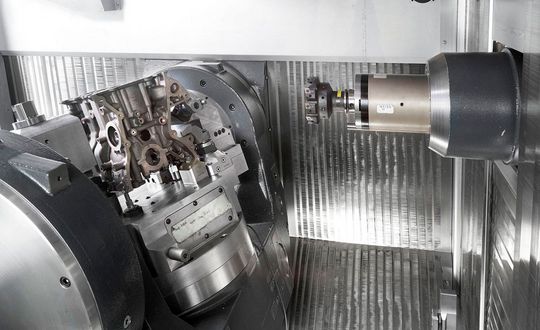

Robust machining units with HSK-A 63 or HSK-A 100 tool shank
- horizontal spindle for optimal chip fall
- lean spindle neck for perfect reach into the workpiece
- rigid cast iron guide slide with high dynamic stiffness and damping
- optimized performance in action with compact overall design and robustly dimensioned spindle bearing arrangement
Options
- HELLER facing slide system in conjunction with the EC 100 spindle
- HELLER attachment head support (MSK)
- HELLER torque support
Chain-type tool magazine for fast tool provisioning
- 3 chain-type magazines with up to 88 pockets for machines with HSK-A 63 to choose from
- 3 chain-type magazines with up to 52 pockets for machines with HSK-A 100 to choose from
- positioning above the work area, which doesn't alter the footprint
Options
- tool coding with RFID chip
- tool shank cleaning, incl. cartridge flushing and drying
- tool break monitoring during machining
- manual tool loading aid
Fast tool change for short chip-to-chip times
- tool changer with lifting/swiveling principle: two NC-axes for a high dynamic and continuous precision
- stable double gripper for secure hold
Direct loading in series production
- workpieces loaded into the work area (direct load)
- automatic loading hatch above the work area for loading from above with gantry loader
- project-specific with direct loading from the front through automatic sliding doors

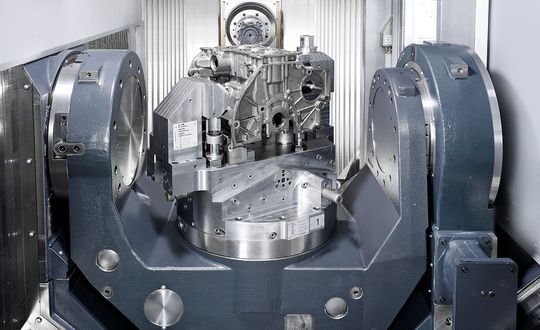

Module selection of rotary axes
- NC rotary indexing table (B) or NC swivel table (A) as the 4th axis
- NC rotary indexing table (AB) for 5th axis machining
- integrated automatic clamping of rotary axes
- optional: integrated 8-point media interface for hydraulic workpiece clamping
Automatic loading and unloading of workpieces
- optimally designed for use in interlinked machines with gantry loader systems
- workpieces loaded into the work area (direct load)
- automatic loading hatch above the work area for loading from above with gantry loader
- project-specific with direct loading from the front through automatic sliding doors
