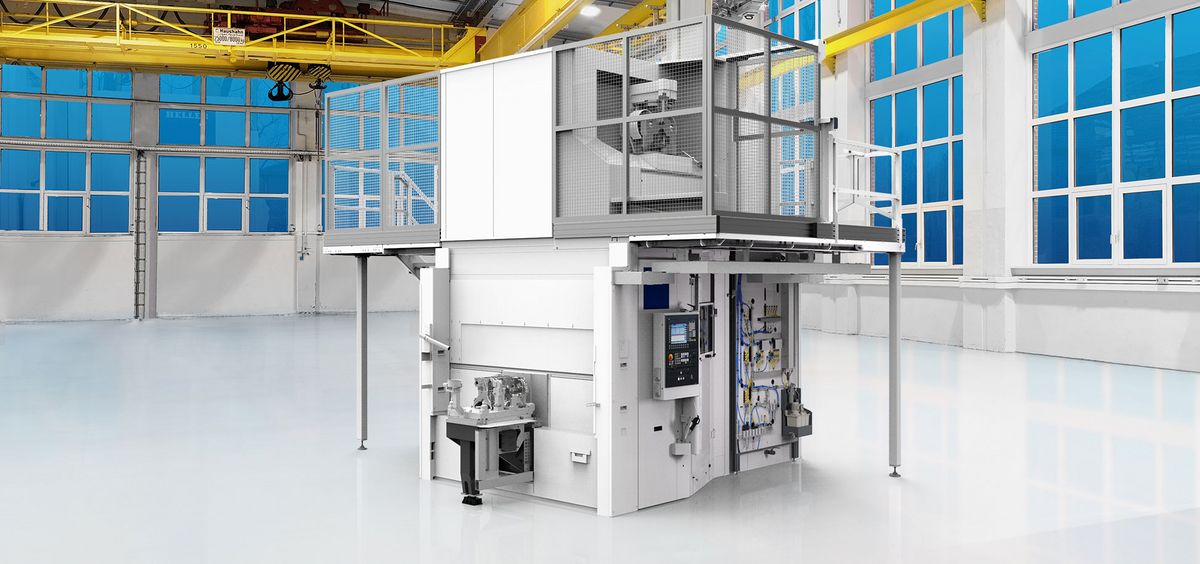

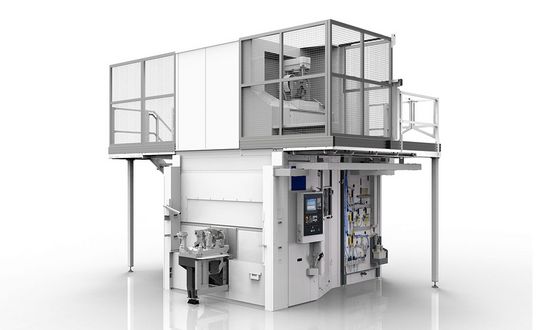

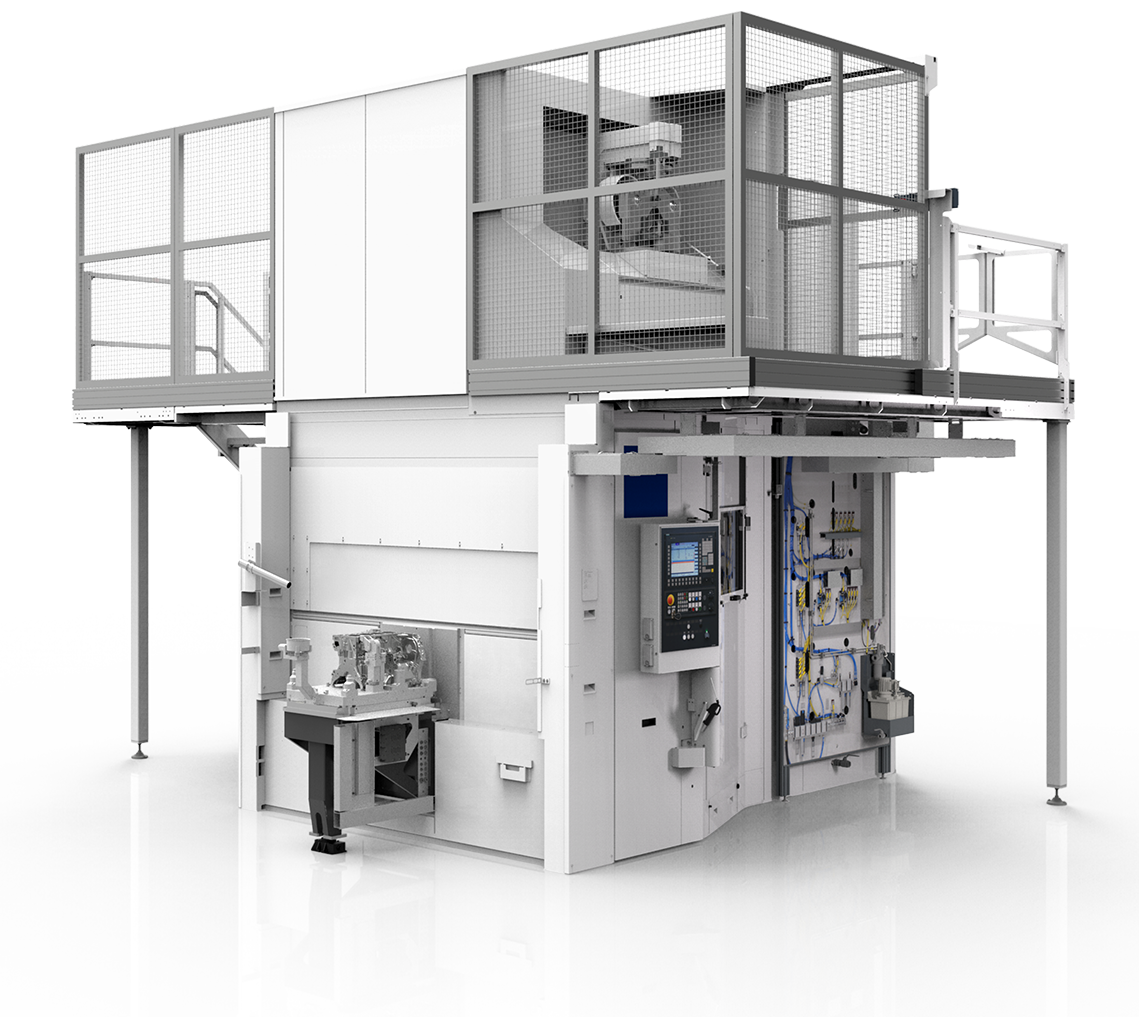

HELLER CBC 200 coating modules

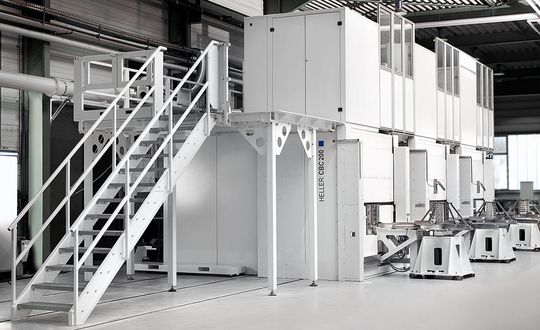

Ready for large scale series production

  • ready for large scale series production
  • all process-relevant media are controlled

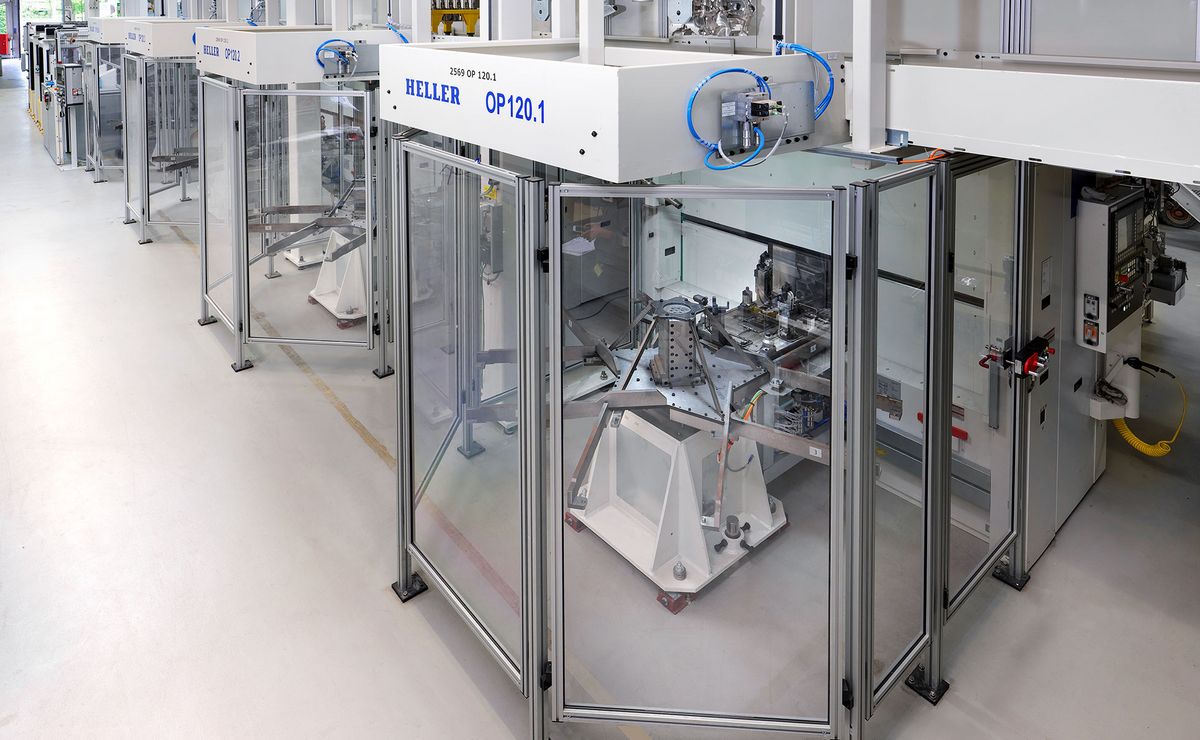

  • automatic workpiece/adapter changer for shorter idle times
  • automatic wire change with integrated wire cutting device and wire preparation during the coating process

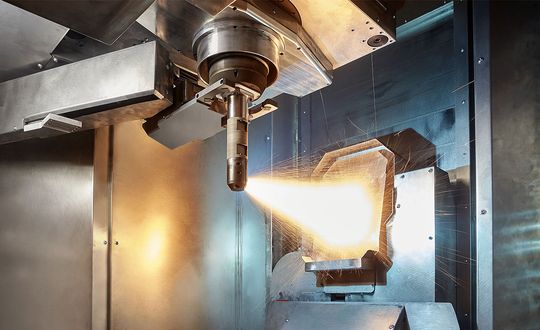

  • optimized access and easy to maintain torch unit
  • global service availability

Technical data

Product selection CBC 200
Positioning range
X/Y/A
750 mm / 610 mm / +/-47°
Clamping surface 800 mm x 460 mm
Workpiece length max. 600 mm
Clamping load max. 150 kg (incl. fixture)
Acceleration
X/Z
5 m/s²
Rapid traverse rate
X/Z
40 m/min
Torch speed max. 300 min⁻¹

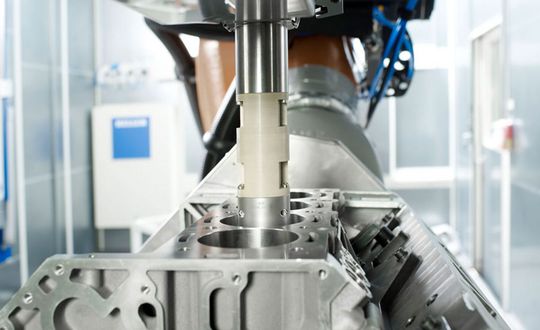

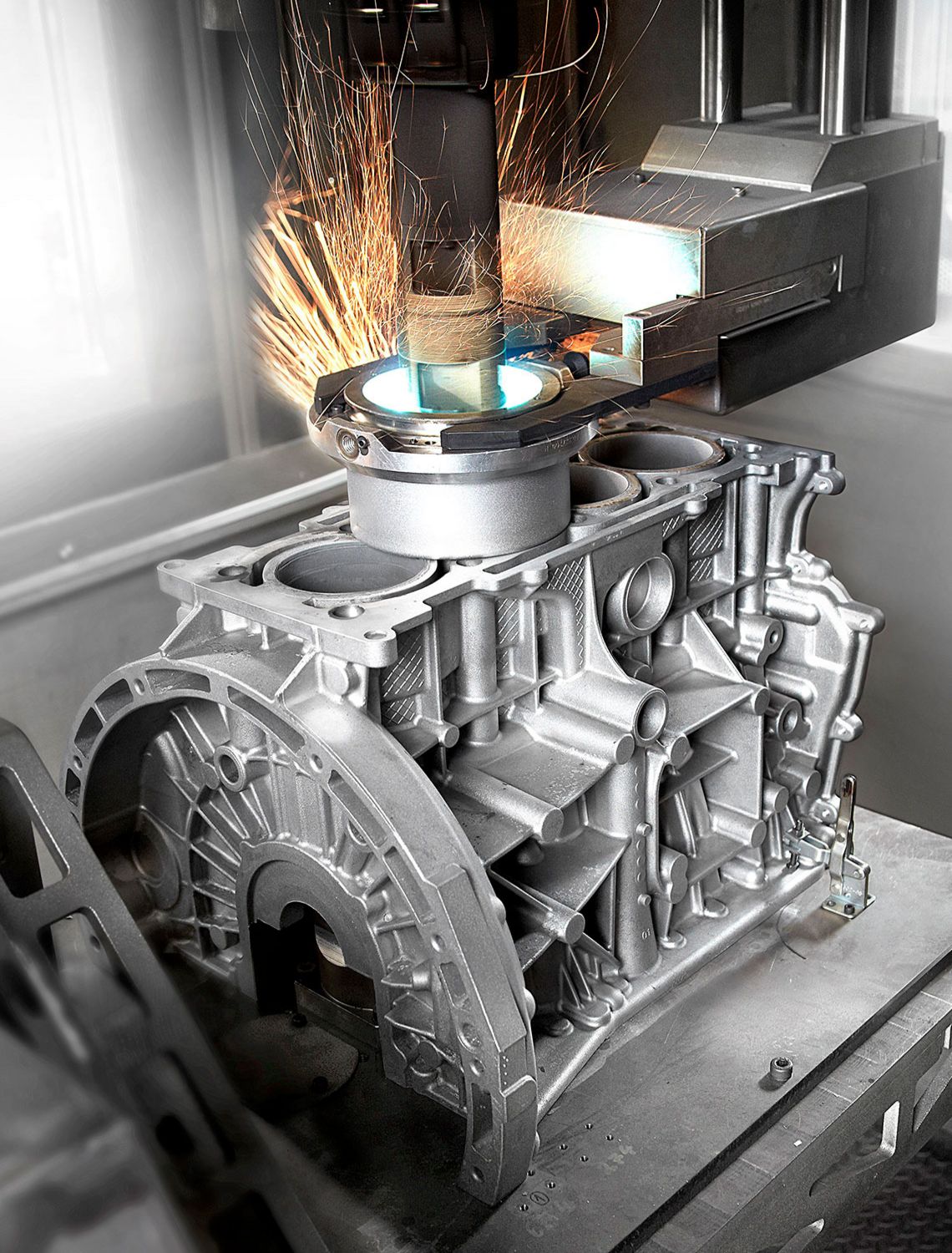

Coating time ca. 30 sec per bore
Workpiece change time ca. 20 sec
Torch and wire change time ca. 180 sec
Engine types I3 to V12
