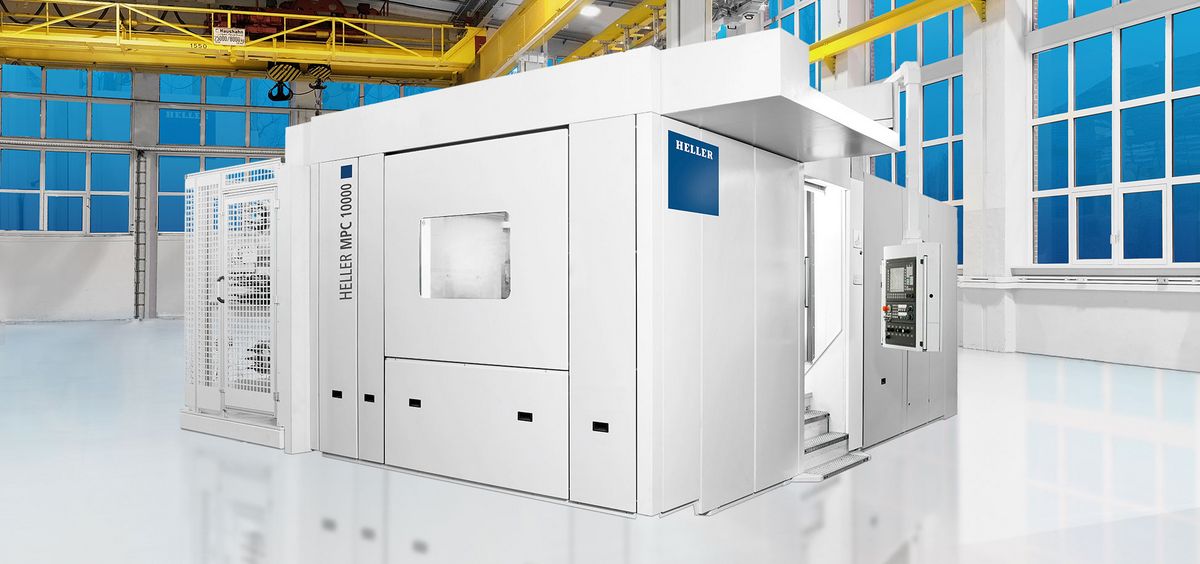

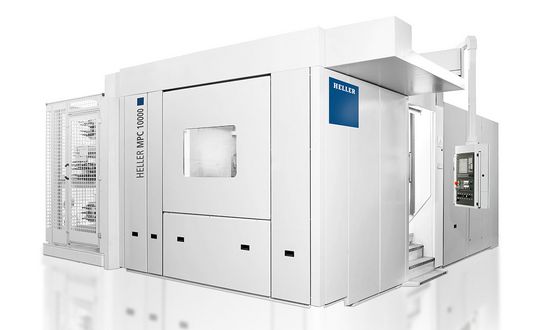

HELLER MPC 10000: the special machine concept guarantees stability with maximum precision
4-axis machining on the HELLER MPC 10000
Robust basic structure: Cross-bed and travelling column in gated design
- maximum stability in the flow of forces through topology-optimized structural components from steel
- optimized flexibility thanks to the use of application-specific machining heads
- automatic head changer
- magazine for machining heads at the rear of the machine
4-axis kinematics with horizontal machining unit
- machine bed carries the X- and the Z-axis in a cross bed arrangement
- the machine column traverses in the X-direction and carries the machining unit
- machining unit traverses in the Y-direction, compactly integrated into the machine column

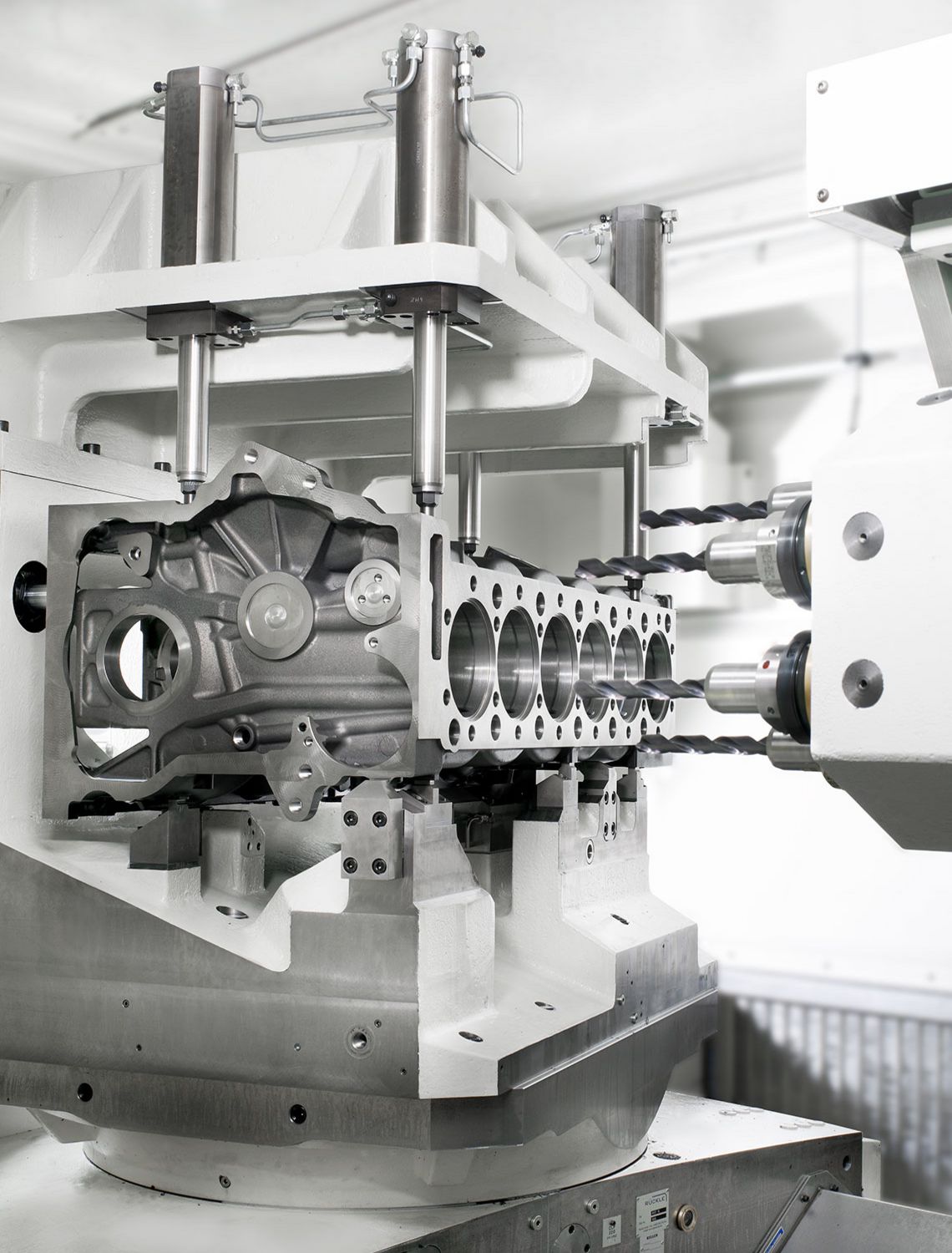

- NC rotary indexing table (B) or NC swivel table (A) as the 4th axis traverses in the Z-direction and executes the feed movement
Stiffness and optimized feed forces in the feed direction: Roller bearing-mounted linear guides and stable YRT bearings in the rotary axes
- linear axes with roller guides, driven by ball screws for a high dynamic
- direct, absolute measuring systems (glass scales in linear axes) for optimized precision and low position tolerance
- NC rotary indexing table with large YRT bearings and automatic clamping for maximum stability and high tilting moments
- NC rotary indexing table (B) with gear drive for high circular milling torque and damping
- NC swivel table (A) with two-sided drive and integrated clamping

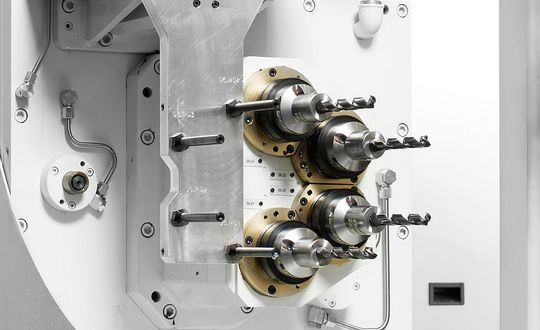

Universal machining unit for automatic mounting of machining heads
- horizontal arrangement for optimal chip fall
- standardized HELLER interface with 4-point clamping and integrated media transfer
- application-specific heads weighing up to 850 kg
- speed and torque realized in the machining head

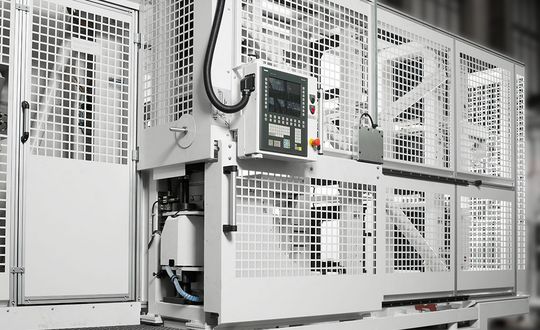

Magazine for machining heads
- storage capacity with up to 8 heads
- integrated setting station with easy access for setting using the crane
Automatic changeover of machining heads
- automatic head changer with sliding principle
- short chip-to-chip time, regardless of the head mass
Direct loading in series production
- workpieces loaded into the work area (direct load)
- automatic loading hatch above the work area for loading from above with gantry loader

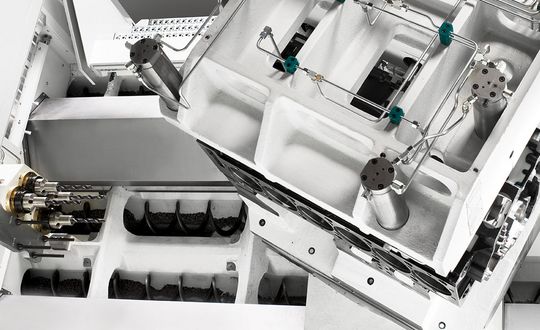

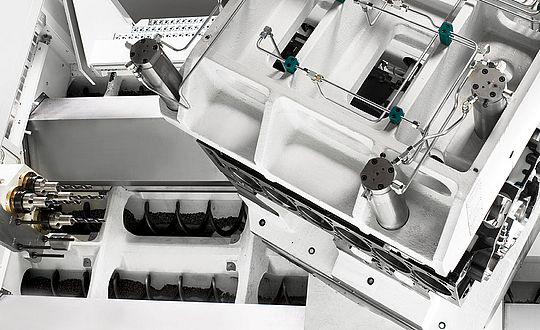

Module selection of rotary axes
- NC rotary indexing table (B) or NC swivel table (A) as the 4th axis
- optional: integrated 12-point media interface for hydraulic workpiece clamping
Automatic loading and unloading of workpieces
- optimally designed for use in interlinked machines with gantry loader systems
- workpieces loaded into the work area (direct load)
- automatic loading hatch above the work area for loading from above with gantry loader
